P. 4

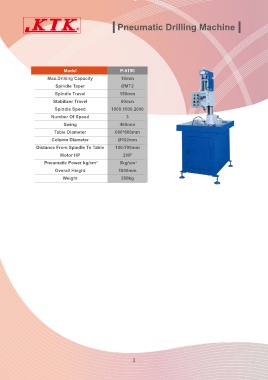

Pneumatic Drilling Machine Hydraulic Dilling Machine
Model P-6150 Model H-5100
Max.Drilling Capacity 16mm Max.Drilling Capacity Ø10mm
Spindle Taper ØMT2 Spindle Taper JT6
Spindle Travel 150mm Spindle Travel 100mm
Stabilizer Travel 60mm Spindle Speed 3S 1000.2000.3000
Spindle Speed 1000.1500.2000 Swing Ø360mm
Number Of Speed 3 Table Diameter 450*600mm
Swing 460mm Column Diameter Ø80mm
Table Diameter 600*800mm Distance From Spindle To Table 100-400mm
Column Diameter Ø102mm Motor HP 1HP
Distance From Spindle To Table 100-700mm Hydraulic Power kg/cm 2 20kg/cm 2
Motor HP 2HP Overall Height 1600mm
Pneumatic Power kg/cm 2 5kg/cm 2 Weight 260kg
Overall Height 1800mm
Weight 350kg
Model H-6150
Max.Drilling Capacity Ø16mm
Spindle Taper MT2
Spindle Travel 150mm
Spindle Speed 3S 1000.1500.2000
Swing 460mm
Table Diameter 600*800mm
Column Diameter Ø102mm
Distance From Spindle To Table 100-700mm
Motor HP 2HP
Hydraulic Power kg/cm 2 20kg/cm 2
Overall Height 1800mm
Weight 380kg
