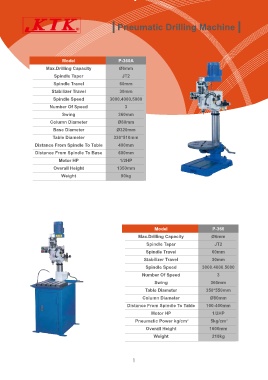

Pneumatic Drilling Machine Pneumatic Drilling Machine

Model P-360A Model P-5100A
Max.Drilling Capacity Ø6mm Max.Drilling Capacity Ø10mm
Spindle Taper JT2 Spindle Taper JT6
Spindle Travel 60mm Spindle Travel 100mm
Stabilizer Travel 30mm Spindle Speed 3S 1000.2000.3000
Spindle Speed 3000.4000.5000 Swing Ø360mm

Number Of Speed 3 Table Diameter 450*600mm
Swing 360mm Column Diameter Ø80mm
Column Diameter Ø80mm Distance From Spindle To Table 100-400mm
Base Diameter Ø320mm Motor HP 1HP
Table Diameter 330*510mm Hydraulic Power kg/cm 2 20kg/cm 2
Distance From Spindle To Table 400mm Overall Height 1600mm
Distance From Spindle To Base 600mm Weight 260kg

Motor HP 1/2HP
Overall Height 1350mm
Weight 90kg

Model P-360 Model P-5100

Max.Drilling Capacity Ø6mm Max.Drilling Capacity 10mm
Spindle Taper JT2 Spindle Taper ØJT6
Spindle Travel 60mm Spindle Travel 100mm
Stabilizer Travel 30mm Stabilizer Travel 60mm
Spindle Speed 3000.4000.5000 Spindle Speed 1000.2000.3000
Number Of Speed 3 Number Of Speed 3
Swing 360mm Swing Ø360mm

Table Diameter 350*550mm Table Diameter 450*600mm
Column Diameter Ø80mm Column Diameter Ø80mm
Distance From Spindle To Table 100-400mm Distance From Spindle To Table 100-400mm
Motor HP 1/2HP Motor HP 1HP
Pneumatic Power kg/cm 2 5kg/cm 2 Pneumatic Power kg/cm 2 5kg/cm 2
Overall Height 1600mm Overall Height 1600mm
Weight 210kg Weight 230kg
