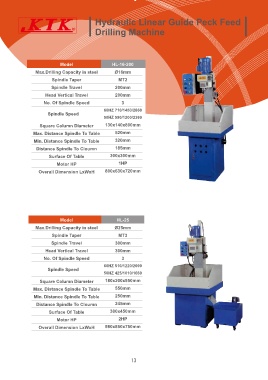

Hydraulic Linear Guide Peck Feed

Drilling Machine

Model HL-16-200
Max.Drilling Capacity in steel Ø16mm
Spindle Taper MT2
Spindle Travel 200mm

Head Vertical Travel 200mm
No. Of Spindle Speed 3
60HZ 710/1450/2860
Spindle Speed
50HZ 590/1200/2380
Square Column Diameter 130x140x800mm
Max. Distance Spindle To Table 520mm
Min. Distance Spindle To Table 320mm
Distance Spindle To Cloumn 185mm
Surface Of Table 300x300mm

Motor HP 1HP
Overall Dimension LxWxH 800x630x720mm

Model HL-25
Max.Drilling Capacity in steel Ø25mm
Spindle Taper MT3
Spindle Travel 300mm
Head Vertical Travel 300mm

No. Of Spindle Speed 3
60HZ 510/1220/2000
Spindle Speed
50HZ 425/1010/1660
Square Column Diameter 180x200x950mm
Max. Distance Spindle To Table 550mm
Min. Distance Spindle To Table 250mm
Distance Spindle To Cloumn 245mm

Surface Of Table 300x450mm
Motor HP 2HP
Overall Dimension LxWxH 980x850x750mm
