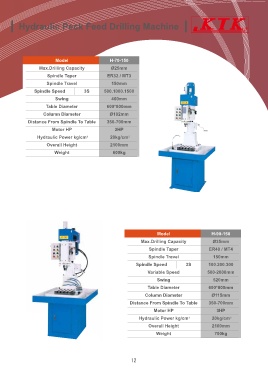

Hydraulic Peck Feed Drilling Machine Hydraulic Peck Feed Drilling Machine

Model H-50-100 Model H-70-150
Max.Drilling Capacity Ø10mm Max.Drilling Capacity Ø25mm
Spindle Taper JT6 Spindle Taper ER32 / MT3
Spindle Travel 100mm Spindle Travel 150mm
Spindle Speed 3S 1000.2000.3000 Spindle Speed 3S 500.1000.1500
Swing Ø360mm Swing 460mm

Table Diameter 450*600mm Table Diameter 600*800mm
Column Diameter Ø80mm Column Diameter Ø102mm
Distance From Spindle To Table 100-400mm Distance From Spindle To Table 350-700mm
Motor HP 1HP Motor HP 2HP
Hydraulic Power kg/cm 2 20kg/cm 2 Hydraulic Power kg/cm 2 20kg/cm 2
Overall Height 1600mm Overall Height 2100mm
Weight 260kg Weight 600kg

Model H-60-150 Model H-90-150
Max.Drilling Capacity 16mm Max.Drilling Capacity Ø35mm
Spindle Taper MT2 Spindle Taper ER40 / MT4
Spindle Travel 150mm Spindle Travel 150mm
Spindle Speed 3S 1000.1500.2000 Spindle Speed 3S 100.200.300

Swing 460mm Variable Speed 500-2000mm
Table Diameter 600*800mm Swing 520mm
Column Diameter Ø102mm Table Diameter 600*800mm
Distance From Spindle To Table 100-700mm Column Diameter Ø115mm
Motor HP 2HP Distance From Spindle To Table 350-700mm
Pneumatic Power kg/cm 2 20kg/cm 2 Motor HP 3HP
Overall Height 1600mm Hydraulic Power kg/cm 2 20kg/cm 2

Weight 230kg Overall Height 2100mm
Weight 700kg
